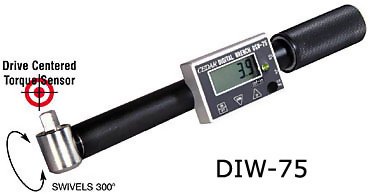

DIW is a lightweight digital torque wrench that tightens or loosens bolts up to 1040 lbf-in. The wrench head swivels 300° and can be used in tight places. You’ll get consistent readings no matter where or how the wrench is gripped because the torque sensor is centered on the drive and not up in the handle. Torque controlled wrenches can also be evaluated by comparative tests on a given fastener. Both breakaway and loosen tests can be performed. Rugged enough to be used in production. Wrench head swivels 300°
This tester has an accuracy of ±0.5%, ± 1 LSD. It offers a programmable setpoint for uniform tightening or Go/No Go testing and also provides peak data for SPC (statistical process control) via the RS232 port. Consistent readings no matter where the wrench is gripped because the torque sensor is centered on the drive.
Photo Gallery

Features
Displays in-lb, N-m, Kg-cm and ft-lb units (User selectable) CW and CCW operation Peak or Real-Time (track) mode (User Selectable) Programmable Target Set-point with audible and visual indicators Includes Calibration Certificate CE Certified
Force Ranges
| Model | Capacity | Drive Size | | DIW-15 | 3.0 – 130.0 lbf-in
3.0 – 150.0 kgf-cm
0.30 – 15.00 N-m | 1/4" | | DIW-20 | 3.0 – 180.0 lbf-in
3.0 – 200.0 kgf-cm
0.30 – 20.00 N-m | 3/8" | | DIW-75 | 3.0-660.0 lbf-in
0.30-55.00 lbf-ft
3.0-750.0 kgf-cm
0.30-75.00 N-m | 3/8" | | DIW-120 | 30-1040 lbf-in
3.0-87.0 lbf-ft
30-1200 kgf-cm
3.0-120.0 N-m | 1/2" |
Accuracy ± 0.5% F.S., ±1 LSD  Specifications
| Accuracy | ±0.5%, ±1 LSD | | Sampling Frequency | 100 Hz (100 samples/sec) | | Display Update Rate | 5 Hz (5 times/sec) | | RS232 Throughput | 80 Hz, max (80 sample/sec,max) | | Memory | 400 data memory for recall or for SPC download | | Warranty | 2 years |
