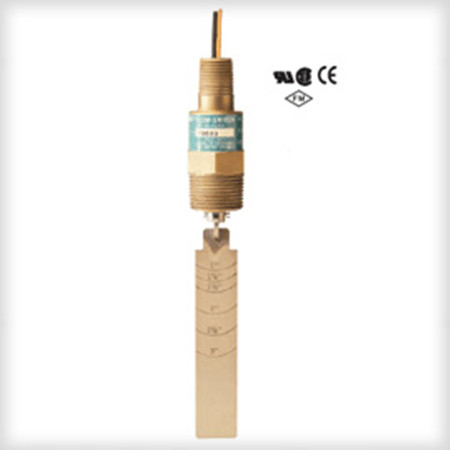

FS-550-66914_FS-550-56730_FS-550-56729_FS-550-61189流量开关GEMS

• Engineered for Positive Liquid Flow Detection at Pressures to 2000 psig (137.9 bar)

• Unique, Patented Cam Design Assures Low Pressure Drop and Does not Require Bellows, Seals, or Mechanical Linkages

• Minimum In-Line Restriction; Paddle Pivots to Move Out of Liquid Path with Increasing Flow

• Pipe Line Size: 1 1/4" and up

• Primary Construction Material: Stainless Steel or Brass

• Setting Type: Fixed

FS-550-66914_FS-550-56730_FS-550-56729_FS-550-61189流量开关GEMS

接液材质:

外壳:黄铜或316不锈钢

桨片:302不锈钢

弹簧:316不锈钢

其它接液部件:陶瓷和特氟隆

最大工件压力:2000PSIG

压降:3 PSIG Max.

工作温度:-30oF ~ + 300oF (-34.4℃~ +148.9℃)

设定点精度:± 25%

开关: SPDT,20VA

重复性:± 5%

电气联接:NO.18AWG,24”长，聚合体引线

FS-550-66914_FS-550-56730_FS-550-56729_FS-550-61189流量开关GEMS

Standard FS-550 switches sense liquid flow in either direction to monitor flow/no-flow conditions. They are supplied in two paddle lengths. The paddle is trimmed during installation to permit switch actuation at the desired flow rate. As flow increases in a pipe, the paddle of the switch pivots to move out of the liquid path, producing less than 3 psig (.21 bar) of pressure drop regardless of pipe size.

Using Gems Safe-Pak? Relays and Barriers, these switches provide automatic flow / no flow interlock and are intrinsically-safe without explosion-proof housing and piping.
