煤制甲醇净化气中微量硫化氢、羰基硫的测定HH一sulfide-III专用填充柱

煤制甲醇净化气中微量硫化氢、羰基硫的测定HH一sulfide-III专用填充柱

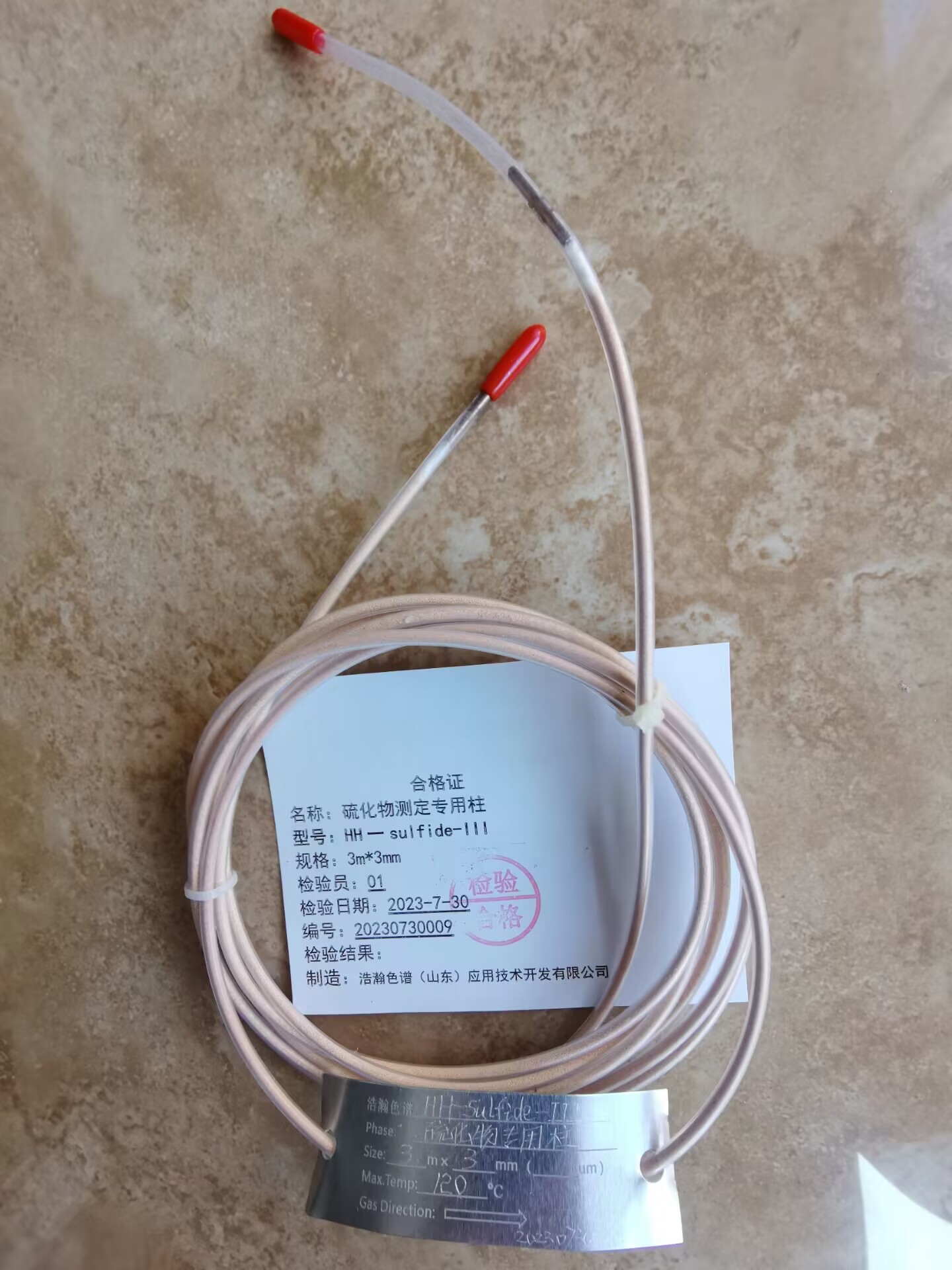

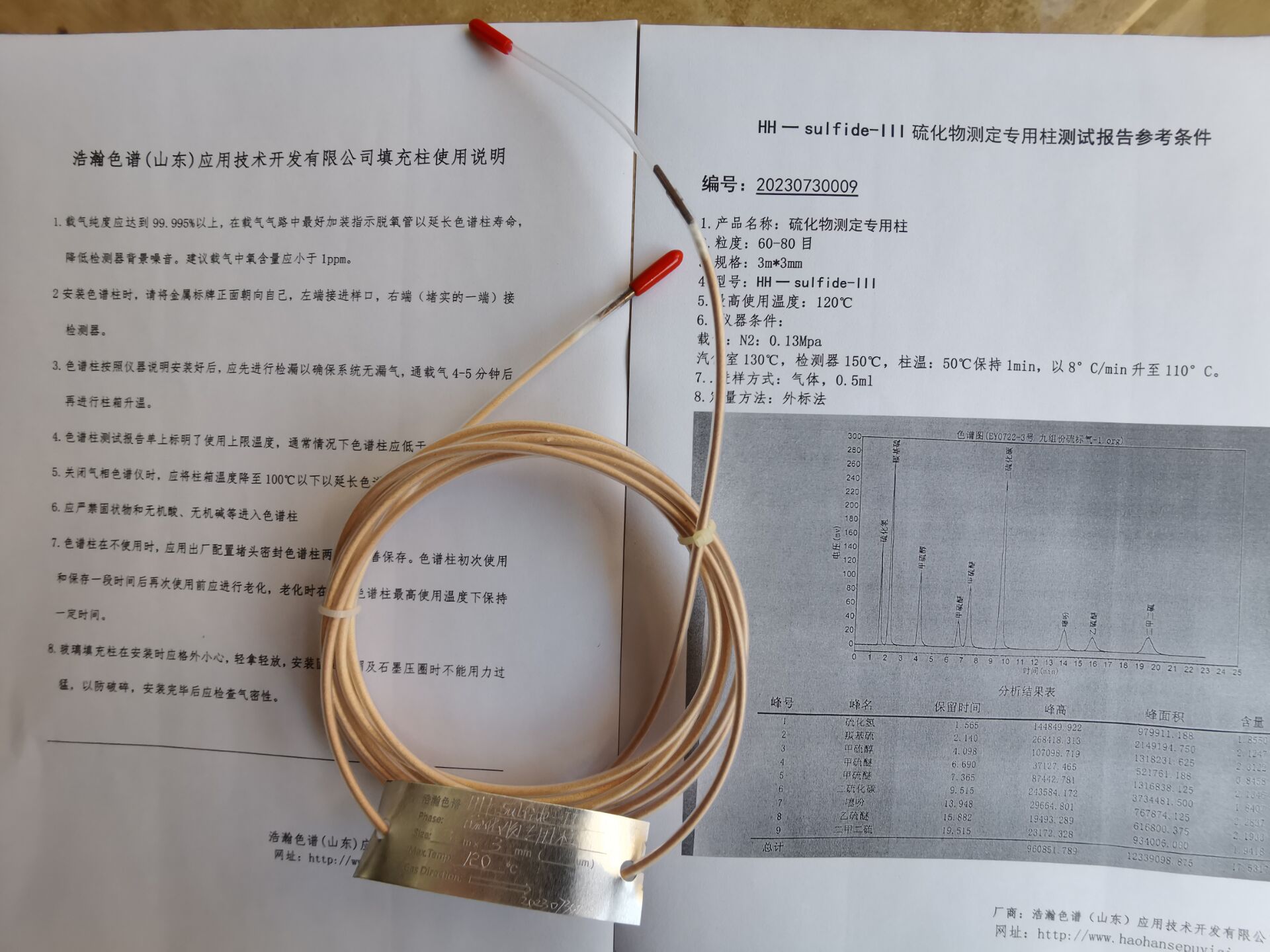

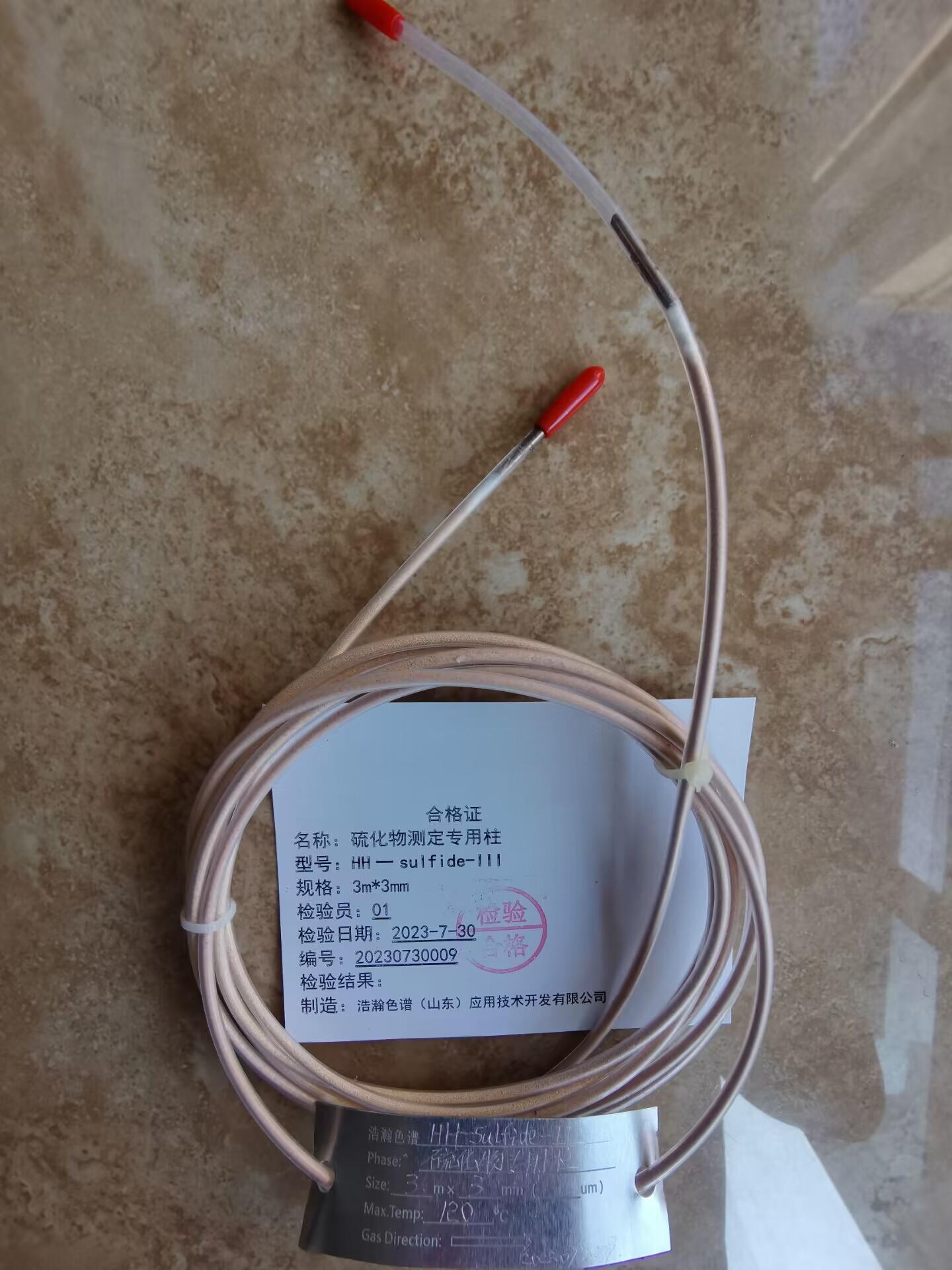

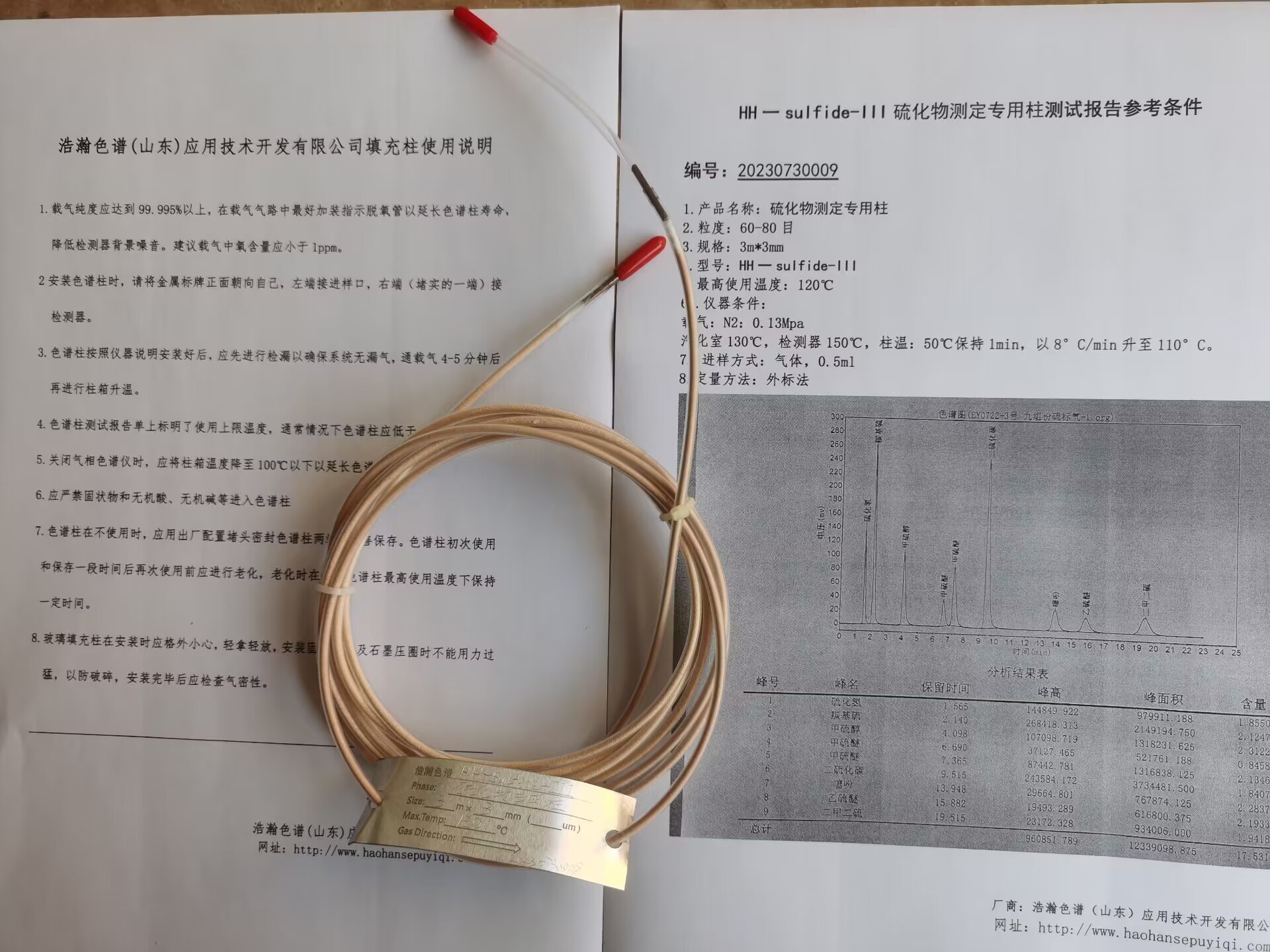

煤制甲醇净化气中微量硫化氢、羰基硫的测定HH一sulfide-III专用填充柱 详细信息：

名称：硫化物测定专用柱

型号：HH一sulfide-III

规格：3m*3mm

使用温度：120°C

编号：20230730009

浩瀚色谱（山东）应用技术开发有限公司通过气相色谱法测定净化气中硫化氢、羰基硫的操作参数,使硫化氢、羰基硫出峰柱效好,分离度高,测定结果准确,重复性好。优化的操作参数,能快速从二氧化碳、氧气、氮气、甲烷、一氧化碳、甲醇等气体成分中将硫化氢、羰基硫分离出来,测定速度快,检测限低,能很好地满足工艺对净化气中硫化氢、羰基硫检测的要求.

煤制甲醇净化气中微量硫化氢、羰基硫的测定HH一sulfide-III专用填充柱  测试谱图：

Determination of trace amounts of hydrogen sulfide and carbonyl sulfur in purified gas from coal to methanol using HH-sulfide-III special packed column

Determination of trace amounts of hydrogen sulfide and carbonyl sulfur in methanol purification gas from coal Detailed information of HH-sulfide-III special packed column:

Name: Special Column for Sulfide Determination

Model: HH - sulfide III

Specification: 3m * 3mm

Operating temperature: 120 ° C

No.: 20230730009

Haohan Chromatography (Shandong) Application Technology Development Co., Ltd. uses gas chromatography to determine the operating parameters of hydrogen sulfide and carbonyl sulfur in purified gas, resulting in good peak column efficiency, high separation, accurate measurement results, and good repeatability. The optimized operating parameters can quickly separate hydrogen sulfide and carbonyl sulfur from gas components such as carbon dioxide, oxygen, nitrogen, methane, carbon monoxide, methanol, etc. The detection speed is fast and the detection limit is low, which can well meet the requirements of the process for detecting hydrogen sulfide and carbonyl sulfur in purified gas

Determination of trace amounts of hydrogen sulfide and carbonyl sulfur in purified gas from coal to methanol using HH-sulfide-III special packed column test spectrogram:
