FL-W10_W70_W20_W40流量计OMEGA

±5% Full Scale Accuracy

±1% Reading Repeatability

Built-in Signal Switch

Vane or Piston Construction

Mounts in Any Position

Brass Housing for Economy

Non-Glass Construction

150 psig Pressure Rating for Piston Models

300 psig Pressure Rating for Vane Models

93°C (200°F) Temperature Rating



产品参数

FL-W10_W70_W20_W40流量计OMEGA

FL-W系列水流监测器可用于从1 gph到90 gpm的水流。这些流量计利用流体的运动来驱动摆动叶片(或活塞),摆动叶片驱动刻度指针并触发信号开关。




规格:


信号开关:3线spdt,15a@125vac


湿部:300系列不锈钢、聚砜、黄铜


密封件:EPR黄铜(叶片型号)、PTFE(活塞型号)


压降:2.2 psi(叶片),2至5 psi(活塞)


死区:最大流量的7%



产品介绍

FL-W10_W70_W20_W40流量计OMEGA

±5% Full Scale Accuracy

±1% Reading Repeatability

Built-in Signal Switch

Vane or Piston Construction

Mounts in Any Position

Brass Housing for Economy

Non-Glass Construction

150 psig Pressure Rating for Piston Models

300 psig Pressure Rating for Vane Models

93°C (200°F) Temperature Rating

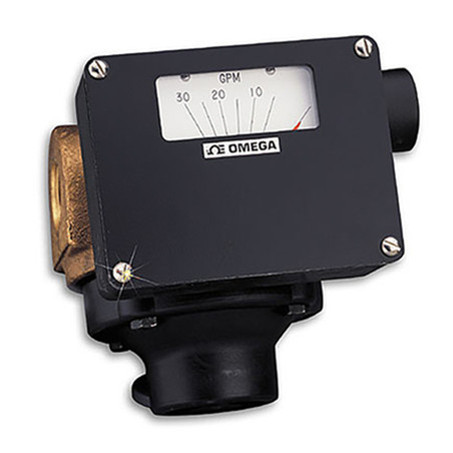

The FL-W Series of water flow monitors can be used with flows from 1 gph up to 90 gpm. These flowmeters utilize the fluid’s movement to actuate a swinging vane (or piston), which drives the scale pointer and triggers the signal switch.


SPECIFICATIONS:

Signal Switch: 3-Wire SPDT, 15 A @ 125 Vac

Wetted Parts: 300 Series SS, and Polysulfone and Brass

Seals: EPR Brass (vane models), PTFE (piston models)

Pressure Drop: 2.2 psi (vane), 2 to 5 psi (piston)

Deadband: 7% of max. flow
