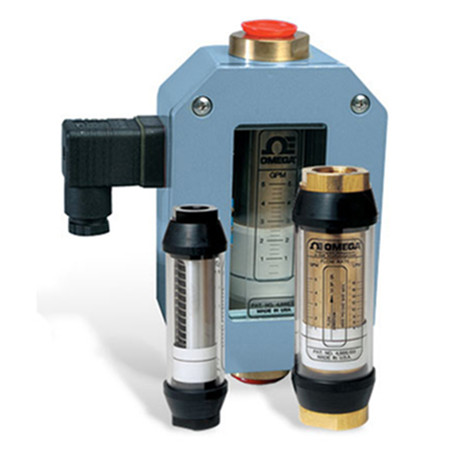

FLMH-1205BR_FLMH-1205SS_FLMH-1210AL_FLMH-1210BR液体流量计OMEGA

直读双刻度


范围0.1至150 gpm(0.4至550 lpm)


高压:3500 psi(黄铜或铝);6000 psi(不锈钢)


高温:至116°C(240°F)(标准)或204°C或316°C(400或600°F)(可选)


安装在任何位置


继电器报警和模拟输出可选


油或水型号




FLMW和FLMH变面积流量计可以直接安装在流体管线上,无需流量矫直机或特殊管道。弹簧和活塞式总成使这些流量计能够安装在任何位置,并保护它们不受粘度变化的影响。适用于水或油,铝,黄铜或不锈钢材质。




带可选模拟输出(-MA)的FLMW或FMLH系列通常用于将与流量成比例的信号传输到过程控制器、PLC、记录器或面板安装显示器。使用-ma选项,用户可以通过连接适当的管脚在读取0至2000赫兹方波脉冲、0至5伏直流模拟信号或2线4至20毫安模拟信号之间进行选择。



产品参数

FLMH-1205BR_FLMH-1205SS_FLMH-1210AL_FLMH-1210BR液体流量计OMEGA

Accuracy: ±2% FS over the entire scale range

Repeatability: ±1%

Flow Measuring Range: 0.4 - 560 lpm (0.1 - 150 gpm)

Maximum Operating Pressure:

   Aluminum and brass monitors: 3500 psig (240 Bar)

   Stainless steel monitors: 6000 psig (410 Bar) up to 116°C (240°F)

Maximum Operating Temperature:

   Standard Models: 116°C (240°F)

   High Temp (-HT) Models: 204°C (400°F) max

   Ultra High Temp (-UHT) Models: 316°C (600°F) max

Pressure Differential: download spec sheet for pressure drop graphs

Standard Calibration Fluids:

   Oil monitors: DTE 25 @ 43°C (110°F), 0.873 sg

   Water monitors: tap water @ 21°C (70°F), 1.0 sg

Maximum Particle Size: 76 microns

Relay (Optional): 1 or 2 form “C” relays, rated 10 A @ 125 or 250 Vac or 0.25 A @ 250 Vdc

Mechanical Life: >107 cycles

Analog Output (Optional): Supply voltage 12 to 35 Vdc, field selectable for 0 to 5 Vdc (100 W minimum load), 0 to 2000 Hz square-wave pulse or 4 to 20 mA; Rmax = 50 (Vs-12). Vs = supply voltage DC

Installation Dimensions:

   1/4 and 1/2 NPT Sizes: 1-7/8 OD x 6.6" length

   3/4 and 1 NPT Sizes: 2-3/8 OD x 7.2" length

   1-1/4 and 1-1/2 NPT Sizes: 3-1/2 OD x 10.1" length



产品介绍

FLMH-1205BR_FLMH-1205SS_FLMH-1210AL_FLMH-1210BR液体流量计OMEGA

The FLMW and FLMH variable area flowmeters can be installed directly in the fluid line without flow straighteners or special piping. The spring-and-piston type assembly enables these flowmeters to be mounted in any position and protects them against changes in viscosity. Available scaled for water or oil, in Aluminum, Brass or Stainless Steel bodies.


The FLMW or the FMLH Series with the optional analog output (-MA) are typically used to transmit a signal proportional to the flow rate to a process controller, a PLC, a recorder, or a panel-mount display. With the -MA options the user can choose between reading a 0 to 2000 Hz square-wave pulse, a 0 to 5 Vdc analog signal, or a 2-wire 4 to 20 mA analog signal by connecting the appropriate pins.
