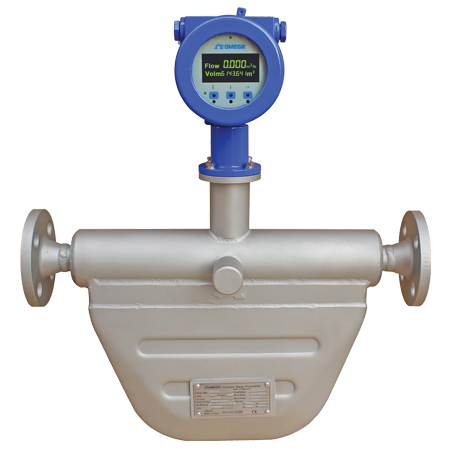

FMC-5505LA_FMC-5506LA_FMC-5507LA_FMC-5201LA_FMC-5202LA质量流量计OMEGA

质量流量、体积、密度和温度测量

坚固的仪表，无移动部件，维护工作量最小。

从单个仪表到宽流量范围内的精度可优化工厂效率

无需流量调节或直管运行，使安装简化，成本更低。

根据科里奥利力原理设计了FMC-5000型科里奥利质量流量计。广泛应用于石油、石化、化工、制药、制浆造纸、食品乳品等行业的流量测量和交接。它是一种先进的流量和密度测量仪器，广泛应用于液体、气体和泥浆的测量，在全球客户中享有很高的声誉。科里奥利流量计通常用于批次控制、混合、填充、计量、监管转移、工艺气体测量等应用中。

根据科里奥利力原理设计了FMC-5000系列科里奥利计。在交流电作用下，安装在测量管上的电磁线圈将使两个平行的测量管以一定的频率振动。当质量（液体或气体）流过测量管时，会产生科里奥利力，导致管顶部出现“弯曲”或“偏转”。这种偏转被感知为安装在管子上的两个电子传感器之间的相移。相移的程度与管内的质量流成正比。通过检测管的相移可以计算出质量流量。温度也被测量并用于补偿。

FMC-5505LA_FMC-5506LA_FMC-5507LA_FMC-5201LA_FMC-5202LA质量流量计OMEGA

MEGA

根据科里奥利力原理设计了FMC-5000型科里奥利质量流量计。广泛应用于石油、石化、化工、制药、制浆造纸、食品乳品等行业的流量测量和交接。它是一种先进的流量和密度测量仪器，广泛应用于液体、气体和泥浆的测量，在全球客户中享有很高的声誉。科里奥利流量计通常用于批次控制、混合、填充、计量、监管转移、工艺气体测量等应用中。

FMC-5505LA_FMC-5506LA_FMC-5507LA_FMC-5201LA_FMC-5202LA质量流量计OMEGA

产品描述

 The FMC-5000 Coriolis Mass Flow Meter is designed according to the Coriolis Force Principle. It is widely used for flow measurements and custody transfer in many industries such as petroleum, petrochemical, chemical, pharmaceutical, pulp and paper, food and dairy, and more. As an advanced flow and density measurement instrument, it is widely used in the measurement of liquids, gases and slurries, and garners a high reputation among customers around the globe. Coriolis meters are typically used in applications like batch control, blending, filling, dosing, custody transfer, process gas measurements, and more.

The FMC-5000 Series Coriolis Meter is designed according to the principle of Coriolis force. Under the alternating current effect, the electromagnetic coils mounted on the measuring tube will make two parallel measuring tubes vibrating at a certain fixed frequency. Whenever mass (either liquid or gas) flows through the measuring tubes, Coriolis force is generated, causing a “bending” or “deflection” in the top of the tubes. This deflection is sensed as a phase shift between two electronic pick-ups mounted on the tubes. The degree of phase shift is directly proportional to the mass flow within the tubes. The mass flow rate can be calculated by detecting the phase shift of the tubes. The temperature is also measured and used for compensation.

Specifications

Flow Range: See charts below

Connection: ANSI, DIN, JIS, or Sanitary Tri-Clamp flanges

Maximum Pressure: 16 bar (230 psi), [Optional: 25 bar (360 psi), 40 bar (580 psi) and 63 bar (913.7 psi)]

Body Material: 304 Stainless Steel

Measuring Tube Material: 316 L SS

Process Temperature Range:

    Integrate Type: -50 to 125°C (-58 to 257°F)

    Remote Type (-R): -50 to 200°C (-58 to 392°F)

Ambient Temperature: -40 to 55°C (-40 to 131°F)

Working Humidity: (5 to 95%) RH at 25°C (77°F)

Flow Accuracy/Repeatability:

    FMC-5100: 0.1/0.05% (Liquid Only)

    FMC-5200: 0.2/0.1% (Liquid Only)

    FMC-5500: 0.5/0.25%

Density Measuring:

    Range: 0.2 to 3.0 g/cm3

    Error: ± 0.002 g/cm3

    Repeatability: 0.001 g/cm3

Temperature Accuracy: ±1.0°C

Protection: NEMA 4X (IP65)

Approvals: CE, RoHS

Communications: RS485 (RTU Modbus?), HART? (-HART option)

Pulse Output: 0 to 10 kHz, ± 0.075% Full Scale

Current Output: 4 to 20 mA, 0.005% Full Scale

Power Supply: 18 to 36 Vdc, 85 to 265 Vac (-AC option), 15 W
