FSW-50_51_52-HST流量开关OMEGA

价    格:询价

产    地:美国更新时间:2019/9/20 10:25:15

品    牌:欧米茄型    号:FSW-50

状    态:正常点击量:200

15221105376
联系我时,请说明是在来宝网上看到的,谢谢!

上海茂培电子科技有限公司

联 系 人:范先生

电     话:15221105376

传     真:

等     级: (第 5年)

性     质:贸易型,

联系我时请说在来宝网上看到的,谢谢!




FSW-50_51_52-HST流量开关OMEGA

fsw-40a和fsw-50系列流量开关具有15a spdt开关和内部螺钉调节功能,用于在线监测开关点。多个牵引盘提供增量开关点调整。它们的非磁性设计使这些开关非常适合生锈的应用。fsw-40a系列采用黄铜和不锈钢结构(可选316不锈钢),而fsw-50系列采用塑料/316不锈钢结构。




fsw-40a系列是理想的机器切削油和污水应用中,大型物体不被捕捉在拖盘上。对于2“及以下管道尺寸的开关,建议安装“T”型管件。对于其他管道尺寸,可使用“三通”管件或焊接接头。



产品参数

FSW-50_51_52-HST流量开关OMEGA


The FSW-40A Series is ideal for machine-cutting oils and for sewage applications in which large objects are not caught on the drag disks. Installation “T” fittings are recommended for installing switches for 2" pipe size and below. For other pipe sizes, a “tee” fitting or weld coupling can be used.

SPECIFICATIONS

Relay Switch: SPDT 15 A @ 125 or 250 Vac; 10,000,000 operations median

Nominal Sensitivity (% Flow Change to Activate Switch):

   10% @ upper end of range

   30% @ lower end of range

Pressure Drop: 1 to 3" pipe, less than 1 psi; 4" and above, negligible

Installation Fitting:

   FSW-40A Series: 1 NPT

   FSW-50 Series: 1? NPT

Max Pressure/Temperature:

   FSW-40A Series: 300 psig @ 82°C (180°F)

   FSW-50 Series: 100 psig @ 93°C (200°F)

Min Temperature: 4°C (40°F)

fsw-40a和fsw-50系列流量开关具有15a spdt开关和内部螺钉调节功能,用于在线监测开关点。多个牵引盘提供增量开关点调整。它们的非磁性设计使这些开关非常适合生锈的应用。fsw-40a系列采用黄铜和不锈钢结构(可选316不锈钢),而fsw-50系列采用塑料/316不锈钢结构。


产品介绍

FSW-50_51_52-HST流量开关OMEGA

Rugged Industrial Design

Switch Point Adjustable While Unit Is Operating

15 A SPDT Switch Directly Controls Pump

Mounts in Any Position

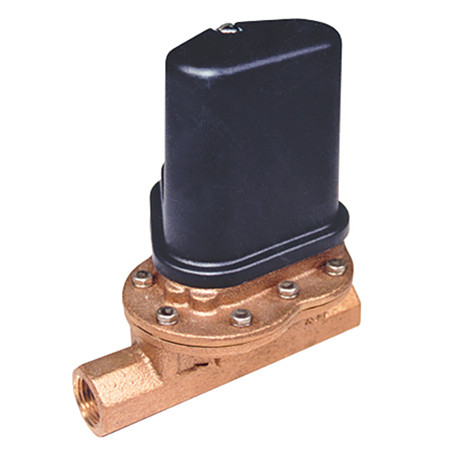

The FSW-40A and FSW-50 Series flow switches feature 15 A SPDT switches and an internal screw adjustment for in-line monitoring of switch points. Multiple drag disks provide incremental switch point adjustment. Their non-magnetic design makes these switches ideal for applications in which rust is a problem. The FSW-40A Series has a brass and stainless steel construction (optional 316 SS), while the FSW-50 Series comes in a plastic/316 SS construction.


The FSW-40A Series is ideal for machine-cutting oils and for sewage applications in which large objects are not caught on the drag disks. Installation “T” fittings are recommended for installing switches for 2" pipe size and below. For other pipe sizes, a “tee” fitting or weld coupling can be used.

SPECIFICATIONS

Relay Switch: SPDT 15 A @ 125 or 250 Vac; 10,000,000 operations median

Nominal Sensitivity (% Flow Change to Activate Switch):

   10% @ upper end of range

   30% @ lower end of range

Pressure Drop: 1 to 3" pipe, less than 1 psi; 4" and above, negligible

Installation Fitting:

   FSW-40A Series: 1 NPT

   FSW-50 Series: 1? NPT

Max Pressure/Temperature:

   FSW-40A Series: 300 psig @ 82°C (180°F)

   FSW-50 Series: 100 psig @ 93°C (200°F)

Min Temperature: 4°C (40°F)


Wetted Parts:

FSW-40 Series: Brass, 300 to 304 SS, phosphor bronze and EPDM and cork rubber (other materials are brass body, Noryl? cover, 300 SS and plastic hardware); also available with 316 SS, FKM, and PTFE

FSW-50 Series: Polyphenylene sulfide, 316 SS, FKM; also available with polyphenylene sulfide, Hastelloy C and FKM construction

Electrical Cable Fitting: Water resistant for cable diameters 0.250 ±0.025"

Weight:

   FSW-40A Series: 1.59 kg (3.5 lb)

   FSW-50 Series: 113 g (4.0 oz)


坚固的工业设计


机组运行时开关点可调


15A单刀双掷开关直接控制泵


安装在任何位置




fsw-40a和fsw-50系列流量开关具有15a spdt开关和内部螺钉调节功能,用于在线监测开关点。多个牵引盘提供增量开关点调整。它们的非磁性设计使这些开关非常适合生锈的应用。fsw-40a系列采用黄铜和不锈钢结构(可选316不锈钢),而fsw-50系列采用塑料/316不锈钢结构。




fsw-40a系列是理想的机器切削油和污水应用中,大型物体不被捕捉在拖盘上。对于2“及以下管道尺寸的开关,建议安装“T”型管件。对于其他管道尺寸,可使用“三通”管件或焊接接头。
