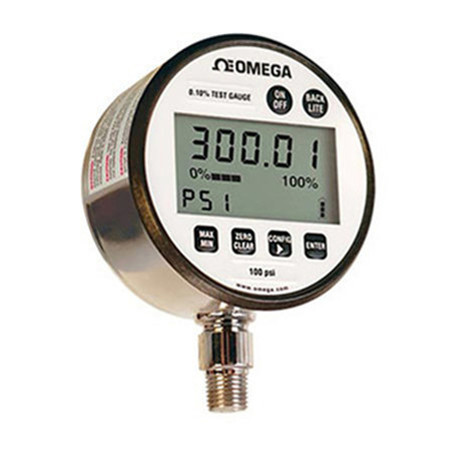

DPG7025-VAC/15_DPG7025-10_DPG7025-15_DPG7025-30压力表

价    格:询价

产    地:美国更新时间:2019/9/11 7:42:53

品    牌:欧米茄型    号:DPG7025-VAC/15

状    态:正常点击量:70

15221105376
联系我时,请说明是在来宝网上看到的,谢谢!

上海茂培电子科技有限公司

联 系 人:范先生

电     话:15221105376

传     真:

等     级: (第 4年)

性     质:贸易型,

联系我时请说在来宝网上看到的,谢谢!




DPG7025-VAC/15_DPG7025-10_DPG7025-15_DPG7025-30压力表OMEGA


A variety of user-configurable options—including languages, update rate, dampening, backlight, and auto-off—greatly increase the DPG7000’s versatility. All units include a stainless steel protective cover and carrying case. A 10-point individual calibration chart is standard with 0.05% accuracy units.



产品参数

DPG7025-VAC/15_DPG7025-10_DPG7025-15_DPG7025-30压力表OMEGA

准确度:


DPG7000:0.05%FS总误差带精度


DPG7010:0.10%FS总误差带精度


DPG7025:0.25%FS总误差带精度


验证压力:


<3000 psi:200%fs


3000至5000 psi:150%fs


7000磅/平方英寸:120%平方英尺


爆破压力:


<3000 psi:800%fs


3000至5000 psi:300%fs


7000磅/平方英寸:150%平方英尺


终点:总误差带(TEB),包括磁滞、线性、重复性和-18至66°C(0至150°F)的温度。


校准:零和范围(密码保护)


案例


尺寸:76 mm(3“)


材质:300系列不锈钢


表面处理:电抛光


等级:防风雨,IP65,NEMA 4


湿部:316不锈钢


插座尺寸:1?4 NPT外螺纹


插座位置:下(6点钟)



产品介绍

DPG7025-VAC/15_DPG7025-10_DPG7025-15_DPG7025-30压力表OMEGA

DISPLAY

Type: LCD, with bar graph; backlight standard

Display Digits: 5, 99,999 counts

Character Height: 16.7 mm (0.66")

Engineering Units: psi, inHg, inH2O, ftSW, Bar, mBar, kPa, mPa, mmHg, cmH2O, mmH2O, kg/cm2

Update Rate: Four Options; 10x/sec, 5x/sec, 2x/sec, 1x/sec

Dampening: Five Options; None, average 2, 4, 6, 8 readings

Language: Seven Languages; English, Spanish, French, Italian, German, Portuguese, Dutch

Backlight: Five Options; on/off, 10 sec., 30 sec., 1 min., 5 min.

Zero Disable: Allows for disabling of Zero button

Contrast: Seven available options

Disable: Allows for “lock-out” of CONFIG options


KEYPAD FUNCTIONS

On/Off: Manually turns unit on and off

Backlight: Manually turns backlight on and off

Min/Max: Stores min. and max. values when displayed

Zero/Clear: Zeros display or clears min. and max. values when displayed

Enter: Selects items in configuration menu

Config: Configuration mode; allows scrolling through configuration menus to select available options
