PGT-45L-5000_PGT-45L-10000_PGT-60B-100_PGT-60L-30V压力表OMEGA

0.25% FS Accuracy

Monel Wetted Parts

Stem and Panel Mount

Mirrored Scale

4?, 6, or 8?" Dial Sizes



产品参数

PGT-45L-5000_PGT-45L-10000_PGT-60B-100_PGT-60L-30V压力表OMEGA

外壳:实心铝,涂有环氧树脂的黑色饰面


窗户:玻璃


运动:不锈钢


波登管:蒙乃尔


连接:蒙乃尔


配件:1/2 mnpt


表盘:外部可调,铝合金,白色背景,黑色刻度和抛光镜带


安装:


阀杆:下部连接


面板或阀杆:背面连接


精度:0.25%fs


戒指:


下部连接形式:螺纹铝


背面连接形式:安装法兰,铰链盖环用滚花螺钉固定


安全特性:正面坚实,背面减压


介质温度:66°C(150°F);型号能承受高达177°C(350°F)的连续温度,但外壳和表盘表面会变色)


温度补偿:0.005%fs/°F



产品介绍

PGT-45L-5000_PGT-45L-10000_PGT-60B-100_PGT-60L-30V压力表OMEGA

0.25% FS Accuracy

Monel Wetted Parts

Stem and Panel Mount

Mirrored Scale

4?, 6, or 8?" Dial Sizes

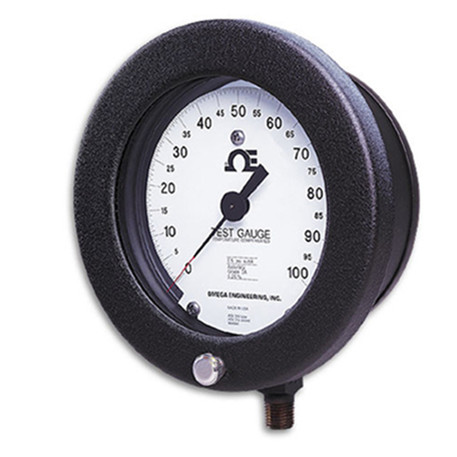

OMEGA? Test Gauges are highly accurate gauges designed for use in instrument shops, plants of all types, and laboratories throughout industry. Performance, reliability, and precision measurement are coupled with consistent accuracy in meeting the demanding service needs of various test gauge applications, such as use as a master reference gauge, in test stand measurements, for production inspection, and for verifying the accuracy of general service gauges. The dial has a stainless steel mirror ring for pointer reflection to prevent parallax error. This mirror surface reflects the pointer in any position and allows the gauge to be read with great accuracy. The lightweight, friction adjustable balanced pointer with knife edge tip assures easy reading to the smallest subdivision. The accented dial graduations have a true width equivalent to 0.25% tolerance for quick and accurate gauge checking.


SPECIFICATIONS

Case: Solid Aluminum with Epoxy-coated Black Finish

Window: Glass

Movement: Stainless Steel

Bourdon Tube: Monel

Connection: Monel

Fitting: ? MNPT

Dial: Externally adjustable, aluminum, white background, black graduations and polished mirror band

Mounting:

   Stem: Lower Connection

   Panel or Stem: Back Connection

Accuracy: 0.25% FS

Ring:

   Lower Connection Model: Threaded Aluminum

   Back Connection Model: Mounting Flange with Hinged Cover Ring Secured by Knurled Screw

Safety Features: Solid Front with Pressure Relief Back

Media Temperature: 66°C (150°F); models will withstand continuous temperature up to 177°C (350°F), but there will be discoloration of case and dial face)

Temperature Compensation: 0.005% FS/°F
