616WL-2-LCD 616WL-4/12/14/22/32/25/35-LCD 数字微差压变送器 Dwyer德威尔

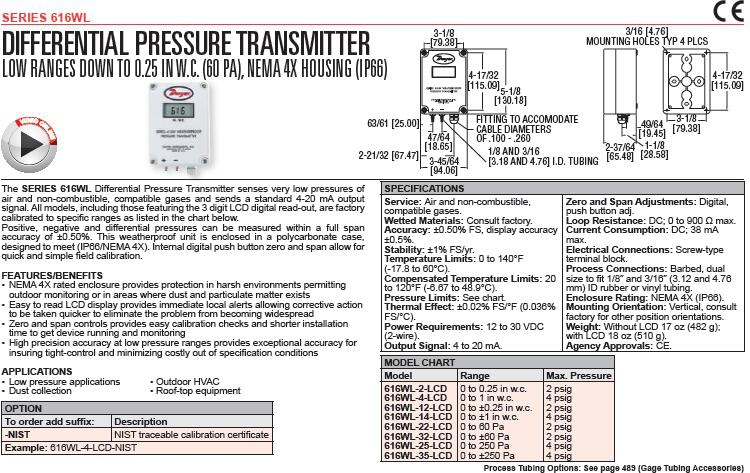

The SERIES 616WL Differential Pressure Transmitter senses very low pressures of

air and non-combustible, compatible gases and sends a standard 4-20 mA output

signal. All models, including those featuring the 3 digit LCD digital read-out, are factory

calibrated to specific ranges as listed in the chart below.

Positive, negative and differential pressures can be measured within a full span

accuracy of ±0.50%. This weatherproof unit is enclosed in a polycarbonate case,

designed to meet (IP66/NEMA 4X). Internal digital push button zero and span allow for

quick and simple field calibration.

FEATURES/BENEFITS

? NEMA 4X rated enclosure provides protection in harsh environments permitting

outdoor monitoring or in areas where dust and particulate matter exists

? Easy to read LCD display provides immediate local alerts allowing corrective action

to be taken quicker to eliminate the problem from becoming widespread

? Zero and span controls provides easy calibration checks and shorter installation

time to get device running and monitoring

? High precision accuracy at low pressure ranges provides exceptional accuracy for

insuring tight-control and minimizing costly out of specification conditions



产品参数

616WL-2-LCD 616WL-4/12/14/22/32/25/35-LCD 数字微差压变送器 Dwyer德威尔

Service: Air and non-combustible,

compatible gases.

Wetted Materials: Consult factory.

Accuracy: ±0.50% FS, display accuracy

±0.5%.

Stability: ±1% FS/yr.

Temperature Limits: 0 to 140°F(-17.8 to 60°C).

Compensated Temperature Limits: 20to 120°F (-6.67 to 48.9°C).

Pressure Limits: See chart.

Thermal Effect: ±0.02% FS/°F (0.036%FS/°C).

Power Requirements: 12 to 30 VDC(2-wire).

Output Signal: 4 to 20 mA.

Zero and Span Adjustments: Digital,push button adj.

Loop Resistance: DC; 0 to 900 Ω max.

Current Consumption: DC; 38 mA max.

Electrical Connections: Screw-type terminal block.

Process Connections: Barbed, dual

size to fit 1/8? and 3/16? (3.12 and 4.76mm) ID rubber or vinyl tubing.

Enclosure Rating: NEMA 4X (IP66).

Mounting Orientation: Vertical, consult factory for other position orientations.

Weight: Without LCD 17 oz (482 g);

with LCD 18 oz (510 g).

Agency Approvals: CE.



产品介绍

616WL-2-LCD 616WL-4/12/14/22/32/25/35-LCD 数字微差压变送器 Dwyer德威尔


616WL-2-LCD 616WL-4/12/14/22/32/25/35-LCD 数字微差压变送器 Dwyer德威尔

Service: Air and non-combustible,

compatible gases.

Wetted Materials: Consult factory.

Accuracy: ±0.50% FS, display accuracy

±0.5%.

Stability: ±1% FS/yr.

Temperature Limits: 0 to 140°F(-17.8 to 60°C).

Compensated Temperature Limits: 20to 120°F (-6.67 to 48.9°C).

Pressure Limits: See chart.

Thermal Effect: ±0.02% FS/°F (0.036%FS/°C).

Power Requirements: 12 to 30 VDC(2-wire).

Output Signal: 4 to 20 mA.

Zero and Span Adjustments: Digital,push button adj.

Loop Resistance: DC; 0 to 900 Ω max.

Current Consumption: DC; 38 mA max.

Electrical Connections: Screw-type terminal block.

Process Connections: Barbed, dual

size to fit 1/8? and 3/16? (3.12 and 4.76mm) ID rubber or vinyl tubing.

Enclosure Rating: NEMA 4X (IP66).

Mounting Orientation: Vertical, consult factory for other position orientations.

Weight: Without LCD 17 oz (482 g);

with LCD 18 oz (510 g).

Agency Approvals: CE.
