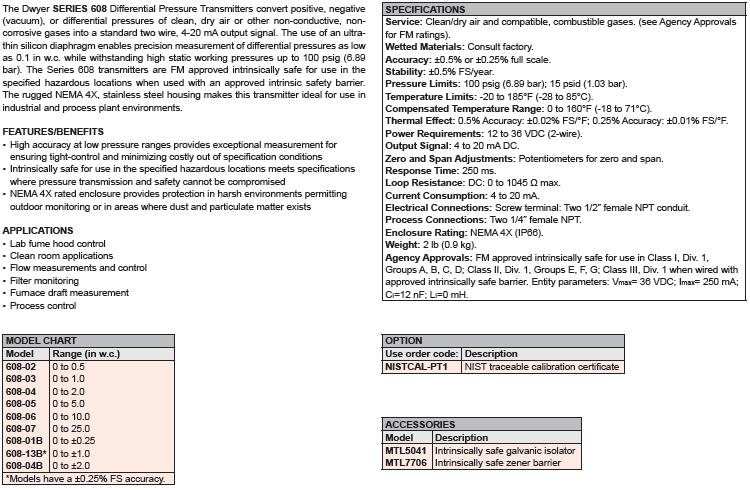

The Dwyer SERIES 608 Differential Pressure Transmitters convert positive, negative

(vacuum), or differential pressures of clean, dry air or other non-conductive, noncorrosive

gases into a standard two wire, 4-20 mA output signal. The use of an ultrathin

silicon diaphragm enables precision measurement of differential pressures as low

as 0.1 in w.c. while withstanding high static working pressures up to 100 psig (6.89

bar). The Series 608 transmitters are FM approved intrinsically safe for use in the

specified hazardous locations when used with an approved intrinsic safety barrier.

The rugged NEMA 4X, stainless steel housing makes this transmitter ideal for use in

industrial and process plant environments.

FEATURES/BENEFITS

? High accuracy at low pressure ranges provides exceptional measurement for

ensuring tight-control and minimizing costly out of specification conditions

? Intrinsically safe for use in the specified hazardous locations meets specifications

where pressure transmission and safety cannot be compromised

? NEMA 4X rated enclosure provides protection in harsh environments permitting

outdoor monitoring or in areas where dust and particulate matter exists

608-02 608-03 608-04/05/06/07/10B/13B/04B Dwyer德威尔 微差压变送器

Service: Clean/dry air and compatible, combustible gases. (see Agency Approvals

for FM ratings).

Wetted Materials: Consult factory.

Accuracy: ±0.5% or ±0.25% full scale.

Stability: ±0.5% FS/year.

Pressure Limits: 100 psig (6.89 bar); 15 psid (1.03 bar).

Temperature Limits: -20 to 185°F (-28 to 85°C).

Compensated Temperature Range: 0 to 160°F (-18 to 71°C).

Thermal Effect: 0.5% Accuracy: ±0.02% FS/°F; 0.25% Accuracy: ±0.01% FS/°F.

Power Requirements: 12 to 36 VDC (2-wire).

Output Signal: 4 to 20 mA DC.

Zero and Span Adjustments: Potentiometers for zero and span.

Response Time: 250 ms.

Loop Resistance: DC: 0 to 1045 Ω max.

Current Consumption: 4 to 20 mA.

Electrical Connections: Screw terminal: Two 1/2? female NPT conduit.

Process Connections: Two 1/4? female NPT.

Enclosure Rating: NEMA 4X (IP66).

Weight: 2 lb (0.9 kg).

Agency Approvals: FM approved intrinsically safe for use in Class I, Div. 1,

Groups A, B, C, D; Class II, Div. 1, Groups E, F, G; Class III, Div. 1 when wired with

approved intrinsically safe barrier. Entity parameters: Vmax= 36 VDC; Imax= 250 mA;

CI=12 nF; LI=0 mH.
