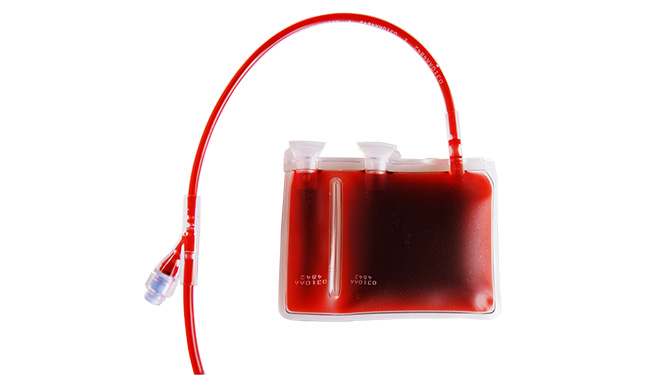

OriGen CS250N 细胞冻存袋详细介绍
产品中文名称：OriGen CS250N 细胞冻存袋
产品英文名称：OriGen CryoStore CS250N Freezing Bag
细胞保存体积：30-70mL
材料：EVA膜（乙烯醋酸乙烯酯胶膜）
管路：N型管。
OriGen CS250N 细胞冻存袋应用
OriGen CS250N 细胞冻存袋适用于血液和细胞等的冷冻和液氮保存，包括：脐带血干细胞、人血小板、人免疫细胞、间充质干细胞等。
OriGen CS250N 细胞冻存袋可收集扩增浓缩冷藏T细胞淋巴细胞。
OriGen CS250N 细胞冻存袋（适用T淋巴细胞）优势
密封端口。标准大小。可液氮冻存。不含乳胶。冻存袋和管路配套。各种管型。可以无针头注射。
可追踪——热焊接（heat welded）批号
每个冻存袋的尾部都有热焊接可以*保存的批号。
液体样本保存 -编号配套的袋子和管路
每个袋子都有一套供体管路（约100uL），并且有编号。
耐久性——性能更好的材料
冻存袋口采用EVA材料，比其他袋子更加牢固。客户反馈良好。
安全性能—免针头注射头
标准管路设置成鲁尔接头，无需针头即可灌注液体，免去针头污染。
使用便利
供体管路在袋子一角方便封口等操作。
OriGen CS250N 细胞冻存袋英文版介绍
OriGen CS250N 细胞冻存袋（适用T淋巴细胞）概述
The Origen Cryostore Freezing Bag is a safe, economical way to preserve blood components when cryopreservation is indicated.
The Cryostore bag has received marketing clearance by FDA, is indicated for freezing blood components, and is rated for cryogenic blood preservation and cord blood storage in liquid nitrogen. It is made from EVA film, which combines tough, liquid nitrogen stability with excellent flexibility, impact, and puncture resistance as well as good optical clarity. EVA has low water vapor transmission and good gas barrier properties, helping to preserve the integrity of blood components.
OriGen CS250N 细胞冻存袋（适用T淋巴细胞）优势
Hermetically Sealed Spike ports
Fits standard cassettes
Integral, sealable label pocket
Rated for use in liquid nitrogen
Latex-Free design
Drop-in freezing bag replacement
Matched bag and tube printing
Different Tube sets available
Needle-free injection sites available
OriGen CS250N 细胞冻存袋（适用T淋巴细胞）
Traceability - Heat Welded Lots
A permanent lot number is heat welded into the tail of each bag for easy traceability.
Aliquots - Matched Bag and Tube Printing
Each bag has a donor tube with printed segments of approximay 100uL and a matched number on the bag.This can aid in keeping aliquot samples with the bag.
Durability - Better Material, Proven Performance
The hermetically sealed spike ports and lm used in every CryoStoreTM bag are made from a more rugged EVA than that used in other bags. The proof of durability is in our
customer’s success.
Safety - Needle Free Injection Port
Standard tubing sets with an injection site now have luer-actuated needle-free injection ports. These swabable ports maintain sterility of the sample through numerous actuations (white paper available), and can eliminate the possibility of needle sticks.
Ease of Use - Designed In
The donor tube is intentionally placed in the corner of the bag for easier de-bubbling and sealing. OriGen can provide your choice of several stock or custom tube sets (see
reverse). You can order multi-bags sets prefabricated to reduce processing time and the possiblity of contamination in the lab.
Biosealer CR 6热合仪详细介绍
Biosealer CR 6热合仪是一种电池密封PVC管，特别是血袋等离子体激光器的管子或套件。经过多年实验验证，用Biosealer CR 6这款热合机热合QriGen冷冻袋完全沒问题。
热合温度和时间都是自动控制的，当热合头感应到热合完成后，热合头上的指示灯亮起，表示热合完成，操作简单。
Biosealer CR 6血袋热合仪由3个单位组成：
同轴电缆密封手柄1,9米。
带电池的电源单元，Rf发生器以及由微型监控的控制单元处理器。
充电器。
另外可选配有便携包用于移动使用。
英文版介绍
Biosealer CR 6
Biosealer CR 6 is a battery operated sealing unit for PVC-tubes, especially bloodbags tubes or sets for plasmaferes. With new and fully loaded batteries it manages more than 1000 seals on PVC-tubes. The high capacity makes it suitable to use CR 6 both in donation rooms, laboratories and in use.
Biosealer CR 6 is comprised of 3 units:
? Sealing handle with coax cable 1,9 m.? Power unit with batteries, Rf generator
and a control unit monitored by a micro processor. ? Battery charger.
Optional there is a carry bag for Use
技术数据
Batteries: 2 x 12V 2Ah
Manufacture: Sonnenschein A500
Internal fuse: Overload protection type PTC, self recovery
Effect consumption: 120 W maximum effect
Sealing time: Adjustable 0,5 - 5 sec
Frequency: 40,68 MHz crystal controlled
Output effect: 70 W maximum effect
Dimensions: 266 x 119 x 88 mm (L x W x H) incl. rf-outlet
Weight: 3,1 kg incl. batteries
Classification: Protection against electrical chock:
class II type B.
Safety approval: EN 60601-1 (IEC601-1)
EMC-approval: EN 60601-1-2 (IEC601-1-2),
emission EN55011 grupp2 class B
