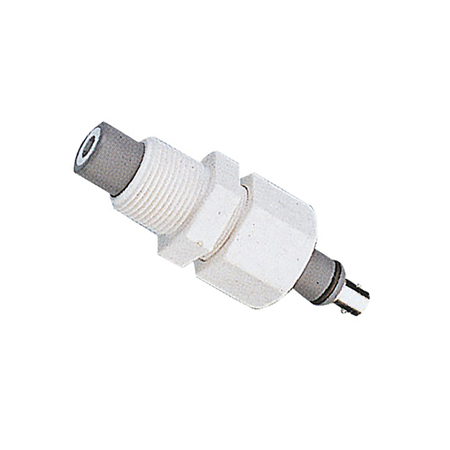

PHE-5460_PHE-5460-1_PHE-5460-2_ORE-5460-2管路平面pH/ORP电极OMEGA

专为?,1或2"管道或三通管而设计

丙烯酰胺凝胶标准的CPVC结构, 适合高温应用

管路电极

PHE/ORE-5460管路pH和ORP电极的表面具有平整、自清洁、抗腐蚀等特点。当曝露于湍流中时,所产生的擦洗作用能保持电极清洁。电极可在温度为0~87°C(32~190°F)、压力高达6.89bar(100psig)和pH值测量范围为0~14的应用中使用。让新材料流过电极表面,可提高响应时间和精度,特别是在测量油性废液、石灰浆、絮凝剂和乳化剂的PH值时。该电极可通过安装在3?4、1或2 NPT三通管上的密封管与电缆组件相连接。

管路电极是代替现有螺纹电极的理想之选,用于可切断液流以进行电极维护的应用。



产品参数

PHE-5460_PHE-5460-1_PHE-5460-2_ORE-5460-2管路平面pH/ORP电极OMEGA

Designed specifically for cuttings, 1 or 2 "pipes or tees"


The CPVC structure of acrylamide gel is suitable for high temperature applications.


Pipeline electrode


The surface of PHE/ORE-5460 pipeline pH and ORP electrode is flat, self-cleaning and corrosion-resistant. When exposed to turbulence, the scrubbing effect can keep the electrode clean. The electrode can be used in applications with temperature ranging from 0 to 87 degrees C (32 to 190 degrees F), pressure up to 6.89bar (100 psig) and pH value ranging from 0 to 14. Allowing new materials to flow through the electrode surface can improve response time and accuracy, especially when measuring the PH values of oily waste liquor, lime slurry, flocculant and emulsifier. The electrode can be connected to the cable assembly by a sealed tube mounted on 3_4, 1 or 2 NPT tee tubes.



产品介绍

PHE-5460_PHE-5460-1_PHE-5460-2_ORE-5460-2管路平面pH/ORP电极OMEGA

高温丙烯酰胺凝胶是PHE-5460电极的标准配置,它们只有CPVC结构。

最高温度:87°C (190°F)

可用选件: "-HF"抗氟化物(需付额外费用) "-LC"低电导率(需付额外费用) "-GL"接地环路(需付额外费用)
