PHE-6511_ORE-6511_PHEH-65-10_PHEH-65-10_PHEH-65K-10平面pH/ORP电极OMEGA

CPVC or PVDF structure


Its design is suitable for installation in tank


Easy to install in the box


Submerged mounting electrode

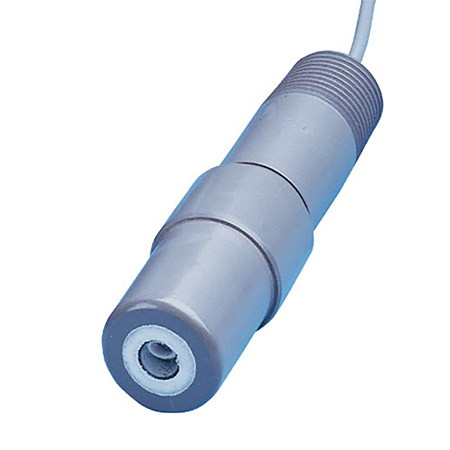

OMEGA PHE/ORE-6510 submerged mounting electrode is designed for use in cylinder block, water tank and flowing liquid. Its induction plane is surrounded by permeable polyethylene reference liquid connection, which can reduce fouling retention. The installation and removal of the electrodes are accomplished by a simple quick detachment device with a rotating coil. The head of the cable assembly has MNPT threads, which can be connected to the coupling parts and the supporting pipeline. The pipeline can be simply mechanically installed to protect the cable from contact with the liquid to be measured. As a result, the components are light in weight and easy to handle when they need to be maintained. Automatic temperature compensation (ATC) can be provided as part of the installation component.


Planar electrodes are ideal for applications where suspended solids are relatively large or flocculation requires low speed.


If the electrode is only used at low speed and has a covering layer on the surface, the electrode can be installed at 45 angle of the fluid, thus achieving a stronger scrubbing effect on the measured surface.



产品参数

PHE-6511_ORE-6511_PHEH-65-10_PHEH-65-10_PHEH-65K-10平面pH/ORP电极OMEGA

规格:

最高温度

标准型号: 65°C (150°F)

-ACRYL"装置: CPVC壳体87°C (190°F),

PVDF壳体100°C (212°F)

可用选件: "-ACRYL"丙烯酰胺凝胶,

"-HF"抗氟化物,"-LC"低电导率,

"-GL"接地环路(需付额外费用)。



产品介绍

PHE-6511_ORE-6511_PHEH-65-10_PHEH-65-10_PHEH-65K-10平面pH/ORP电极OMEGA

OMEGA? PHE/ORE-6510浸没式安装电极的设计适合在缸体、水箱和流动液体等中使用。它的感应平面环绕着可渗透的聚乙烯参比液接,可减少污垢积留。电极的安装和拆除通过一个简单的?圈转动快速脱开装置完成。电缆组件的头部有? MNPT螺纹,可以连接到耦合件及支撑管路上。这管路可进行简单的机械安装,以保护电缆而不接触到要测量的液体。因而,组件重量很轻,在需要维护时处理很方便。自动温度补偿(ATC)可作为安装组件的一部分予以提供。

平面设计的电极非常适合悬浮固体相对较多或因絮凝作用而需要低速度的应用。

如果只在低速度中使用且电极表面有覆盖层的问题,电极可面向流体45°角安装,从而在测量表面获得更强的擦洗作用。
